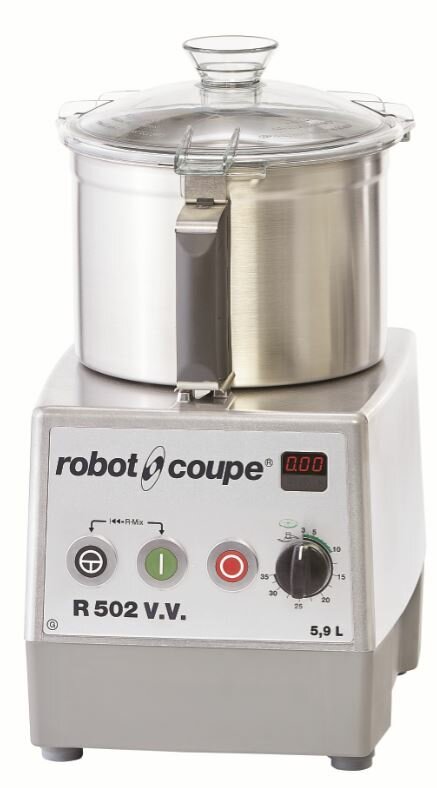

R 502 V.V.
A multi-function machine designed for vegetable preparation and all round use!
- Cutter to chop, emulsify, knead, grind and prepare sauces
- Vegetable slicer to easily handle your daily preparation: slice, grate, ripple cut, julienne, French Fry and dice.
Description
Timer
countdown and stopwatch.
Essential for standardising your recipes with maximum precision.
Extra-large bowl
Extra-large 5.9-l stainless steel bowl. Save time by working with larger quantities.
Scraper arm
Scraper arm that easily scrapes the lid and the edges of the bowl, without stopping to scrape thoroughly.
Practical handle
Practical and comfortable soft-touch handle.
Smooth blade
Knife with smooth blades for emulsions, sauces and coarse or fine grinding
Optional blades
Options: Serrated blade for grinding and kneading. Toothed knife for cutting parsley.
Accessories
0.6 mm
0.6 mm
0.8 mm
0.8 mm
1 mm
1 mm
2 mm
2 mm
3 mm
3 mm
4 mm
4 mm
5 mm
5 mm
6 mm
6 mm
8 mm
8 mm
10 mm
10 mm
14 mm
14 mm
4 mm
4 mm
6 mm
6 mm
2 mm
2 mm
3 mm
3 mm
5 mm
5 mm
1.5 mm
1.5 mm
2 mm
2 mm
3 mm
3 mm
4 mm
4 mm
5 mm
5 mm
7 mm
7 mm
9 mm
9 mm
Parmesan cheese
Parmesan cheese
Röstis potatoes
Röstis potatoes
Raw potatoes
Raw potatoes
1 mm
1 mm
1 x 8 mm (Ribbons)
1 x 8 mm (Ribbons)
1x26 mm (Onions and cabbage)
1x26 mm (Onions and cabbage)
2 x 2 mm
2 x 2 mm
2 x 4 mm
2 x 4 mm
2 x 6 mm
2 x 6 mm
2 x 8 mm
2 x 8 mm
2x10 mm (Tagliatelles)
2x10 mm (Tagliatelles)
2.5 x 2.5 mm
2.5 x 2.5 mm
3 x 3 mm
3 x 3 mm
4 x 4 mm
4 x 4 mm
6 x 6 mm
6 x 6 mm
8 x 8 mm
8 x 8 mm
5 x 5 x 5 mm
5 x 5 x 5 mm
8 x 8 x 8 mm
8 x 8 x 8 mm
10 x 10 x 10 mm
10 x 10 x 10 mm
12 x 12 x 12 mm
12 x 12 x 12 mm
14 x 14 x 5 mm (Mozzarella)
14 x 14 x 5 mm (Mozzarella)
14 x 14 x 10 mm
14 x 14 x 10 mm
14 x 14 x 14 mm
14 x 14 x 14 mm
20 x 20 x 20 mm
20 x 20 x 20 mm
25 x 25 x 25 mm
25 x 25 x 25 mm
50 x 70 x 25 mm (Salads)
50 x 70 x 25 mm (Salads)
6 x 6 mm
6 x 6 mm
8 x 8 mm
8 x 8 mm
8 x 16 mm
8 x 16 mm
10 x 10 mm
10 x 10 mm
10 x 16 mm
10 x 16 mm
Characteristics and product comparison
 R 502 V.V.
|
 R 752
|
 R 752 V.V.
|
|
|---|---|---|---|
| Induction motor |
Yes | Yes | Yes |
| Wattage | 1500 W | 1 800 W | 1500 W |
| Voltage | Single phase | Three phase | Single phase |
| Speed(s) | 300 to 3500 rpm for cutter 300 to 1000 rpm for vegetable slicer |
750 rpm - 1500 rpm | 300 to 3500 rpm for cutter, 300 to 1000 rpm for vegetable slicer |
| Pulse | Yes | Yes | Yes |
| Motor base | Metal | Metal | Metal |
| Feed tube(s) | Half moon hopper 2.2 L Cylindrical hopper Ø 58 mm and Ø 39 mm, Exactitube pusher - Included |
Half moon hopper 4.4 L, Cylindrical hopper Ø 58 mm and Ø 39 mm, Exactitube pusher - Included |
Half moon hopper 4.4 L, Cylindrical hopper Ø 58 mm and Ø 39 mm, Exactitube pusher - Included |
| Cutter | 5.9 L stainless steel bowl | 7.5 L stainless steel bowl | 7.5 L stainless steel bowl |
| Scraper arm | Yes | Yes | Yes |
| Blade(s) | Stainless steel smooth blade - Included | All stainless steel detachable, adjustable smooth blade - Included |
All stainless steel detachable, adjustable smooth blade - Included |
| Ejection | Continuous | Countinious | Continious |
| Discs | Not included | Not included | Not included |
| Net weight (kg) | 30 | 33 | 34 |
| Gross weight (kg) | 35 | 38 | 38 |
| Dimensions (L x W x H) mm |
380x365x670 |
380x365x710 |
380x365x710 |
|
This product
|
More information | More information |
