Combination Processors

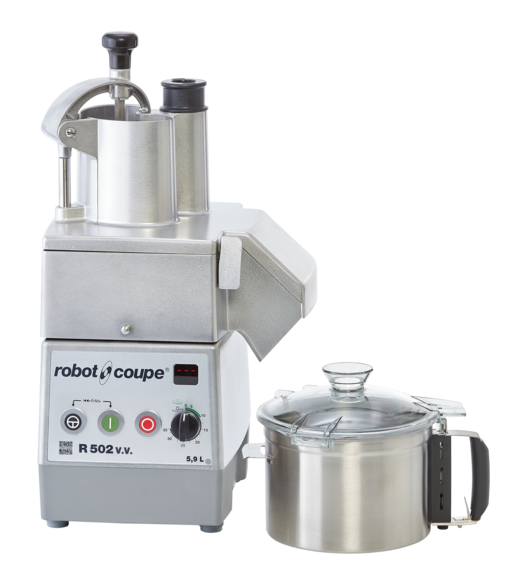

R 502 V.V.

Single Phase 120 V Picto couverts 50 - 300

A multi-function machine designed for vegetable preparation and all round use!
- Cutter to chop, emulsify, knead, grind and prepare sauces
- Vegetable slicer to easily handle your daily preparation: slice, grate, ripple cut, julienne, French Fry and dice

REQUEST A DEMONSTRATION REQUEST A QUOTE

Description & advantages

Cutter bowl

5.9 L stainless steel Cutter bowl to process large quantities to save time.
Ergonomic soft touch handle designed for more comfort and for a firm and secure grip.

Scraper arm

Designed to easily scrape the lid and edges of the bowl without stopping the machine.

Timer

countdown and stopwatch.
Essential for standardising your recipes with maximum precision.

Large Output

- To insert large vegetables such as cabbage, lettuce, onion, tomato and eggplant. Can accommodate up to 10 tomatoes at a time.
- Precision: The cylindrical hopper (Ø 58 mm) is intended for long and delicate vegetables and (zuchinnis, cucumbers, etc) with flawless cutting precision.

Exclusive Cuts!

Exactitube pusher (Ø 39 mm): chillis, pickles, dry sausage, bananas, strawberries and grapes into regular slices.

Flawless glazed cut

Complete range of more than 50 discs  with high-precision sharpening for the highest quality cuts..

Accessories

Slicers Almonds -
0.6 mm
Slicers
- 0.8 mm
Slicers
- 1 mm (3/64")
Slicers
- 2 mm (5/64")

Characteristics and product comparison

R 502 V.V.
R 702
R 702 V.V.
Induction
motor
Yes Yes Yes
Power 2 HP 2.4 HP 2 HP
Voltage Single Phase 120 V 3 phase 208V-240V Single phase 120 V
Speeds 300 to 3500 rpm 850 rpm - 1725 rpm 300 to 3500 rpm
Timer - Yes Yes
Pulse Yes Yes Yes
Motor base Metal Metal Metal
Feed Hopper Half-moon hopper, Cylindrical hopper Ø 2 1/4" Half-Moon Hopper Cylindrical hopper Ø 2 1/4" Half-Moon Hopper Cylindrical hopper Ø 2 1/4"
Cutter Bowl 5.9 L stainless steel bowl 7,5 L stainless steel bowl 7,5 L stainless steel bowl
Scraper arm Yes Yes Yes
Blade(s) Stainless steel smooth "S" blade - Included All Stainless steel detachable, adjustable smooth blade - Included All Stainless steel detachable, adjustable smooth blade - Included
Discs Included: Slicing disc 3 mm (1/8"), grating disc 3 mm (1/8") Included: Slicing disc 3 mm (1/8"), grating disc 3 mm (1/8") Included: Slicing disc 3 mm (1/8"), grating disc 3 mm (1/8")
Gross weight (Lbs) 79 83 83
Dimensions
(W × L × H)
29.5" x 18" x1 9.5" 29.5" x 18" x 19.5" 29.5" x 18" x 19.5"
Dicing French Fry Capabilities Yes Yes Yes
