R 502

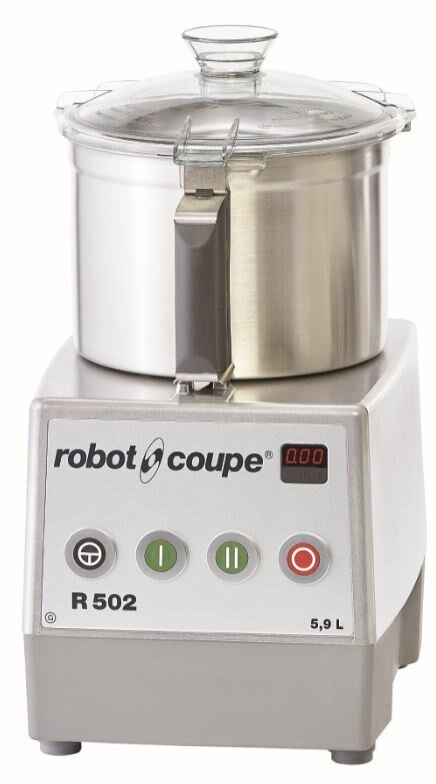

A multi-function machine designed for vegetable preparation and all round use!
- Cutter to chop, emulsify, knead, grind and prepare sauces
- Vegetable slicer to easily handle your daily preparation: slice, grate, ripple cut, julienne, French Fry and dice.
Description
Timer
countdown and stopwatch.
Essential for standardising your recipes with maximum precision.

5.9 L stainless steel Cutter bowl
Process large quantities to save time.
Bowl with ergonomic soft touch handle designed for more comfort and for a firm and secure grip.


Scraper arm
Designed to easily scrape the lid and edges of the bowl without stopping the machine.
Accessories


0.6 mm
0.6 mm


0.8 mm
0.8 mm


1 mm
1 mm


2 mm
2 mm


3 mm
3 mm


4 mm
4 mm


5 mm
5 mm


6 mm
6 mm


8 mm
8 mm


10 mm
10 mm


14 mm
14 mm


4 mm
4 mm


6 mm
6 mm


2 mm
2 mm


3 mm
3 mm


5 mm
5 mm


1.5 mm
1.5 mm


2 mm
2 mm


3 mm
3 mm


4 mm
4 mm


5 mm
5 mm


7 mm
7 mm


9 mm
9 mm


Parmesan cheese
Parmesan cheese


Röstis potatoes
Röstis potatoes


Raw potatoes
Raw potatoes


1 mm
1 mm


1 x 8 mm (Ribbons)
1 x 8 mm (Ribbons)


1x26 mm (Onions and cabbage)
1x26 mm (Onions and cabbage)


2 x 2 mm
2 x 2 mm


2 x 4 mm
2 x 4 mm


2 x 6 mm
2 x 6 mm


2 x 8 mm
2 x 8 mm


2x10 mm (Tagliatelles)
2x10 mm (Tagliatelles)


2.5 x 2.5 mm
2.5 x 2.5 mm


3 x 3 mm
3 x 3 mm


4 x 4 mm
4 x 4 mm


6 x 6 mm
6 x 6 mm


8 x 8 mm
8 x 8 mm


5 x 5 x 5 mm
5 x 5 x 5 mm


8 x 8 x 8 mm
8 x 8 x 8 mm


10 x 10 x 10 mm
10 x 10 x 10 mm


12 x 12 x 12 mm
12 x 12 x 12 mm


14 x 14 x 5 mm (Mozzarella)
14 x 14 x 5 mm (Mozzarella)


14 x 14 x 10 mm
14 x 14 x 10 mm


14 x 14 x 14 mm
14 x 14 x 14 mm


20 x 20 x 20 mm
20 x 20 x 20 mm


25 x 25 x 25 mm
25 x 25 x 25 mm


50 x 70 x 25 mm (Salads)
50 x 70 x 25 mm (Salads)


6 x 6 mm
6 x 6 mm


8 x 8 mm
8 x 8 mm


8 x 16 mm
8 x 16 mm


10 x 10 mm
10 x 10 mm


10 x 16 mm
10 x 16 mm










Characteristics and product comparison
![]() R 502
|
![]() R 502 V.V.
|
![]() R 752
|
|
---|---|---|---|
Induction motor |
Yes | Yes | Yes |
Wattage | 900 W | 1500 W | 1 800 W |
Voltage | Three phase | Single phase | Three phase |
Speed(s) | 750 rpm to 1500 rpm | 300 to 3500 rpm for cutter 300 to 1000 rpm for vegetable slicer |
750 rpm - 1500 rpm |
Pulse | Yes | Yes | Yes |
Motor base | Metal | Metal | Metal |
Feed tube(s) | Half moon hopper 2.2 L Cylindrical hopper Ø 58 mm and Ø 39 mm, Exactitube pusher |
Half moon hopper 2.2 L Cylindrical hopper Ø 58 mm and Ø 39 mm, Exactitube pusher - Included |
Half moon hopper 4.4 L, Cylindrical hopper Ø 58 mm and Ø 39 mm, Exactitube pusher - Included |
Cutter | 5.9 L stainless steel bowl with handle | 5.9 L stainless steel bowl | 7.5 L stainless steel bowl |
Scraper arm | Yes | Yes | Yes |
Blade(s) | Stainless steel smooth blade - Included | Stainless steel smooth blade - Included | All stainless steel detachable, adjustable smooth blade - Included |
Ejection | Continuous | Continuous | Countinious |
Discs | Not included | Not included | Not included |
Net weight (kg) | 29 | 30 | 33 |
Gross weight (kg) | 34 | 35 | 38 |
Dimensions (L x W x H) mm |
380x365x670 |
380x365x670 |
380x365x710 |
