R 402 V.V.
A multi-function machine designed for vegetable preparation and all round use!
- Cutter to chop, emulsify, knead, grind and prepare sauces
- Vegetable slicer to easily handle your daily preparation: slice, grate, ripple cut, julienne, French Fry and dice.
Description
Cutter bowl
4.5L stainless steel cutter bowl with handle.
Bowl-base twin-blade assembly
To process both large and small quantities.
Optional
- Coarse serrated blade: kneading and grinding
- Fine serrated blade: herbs and spices.
Lid equipped with 2 hoppers

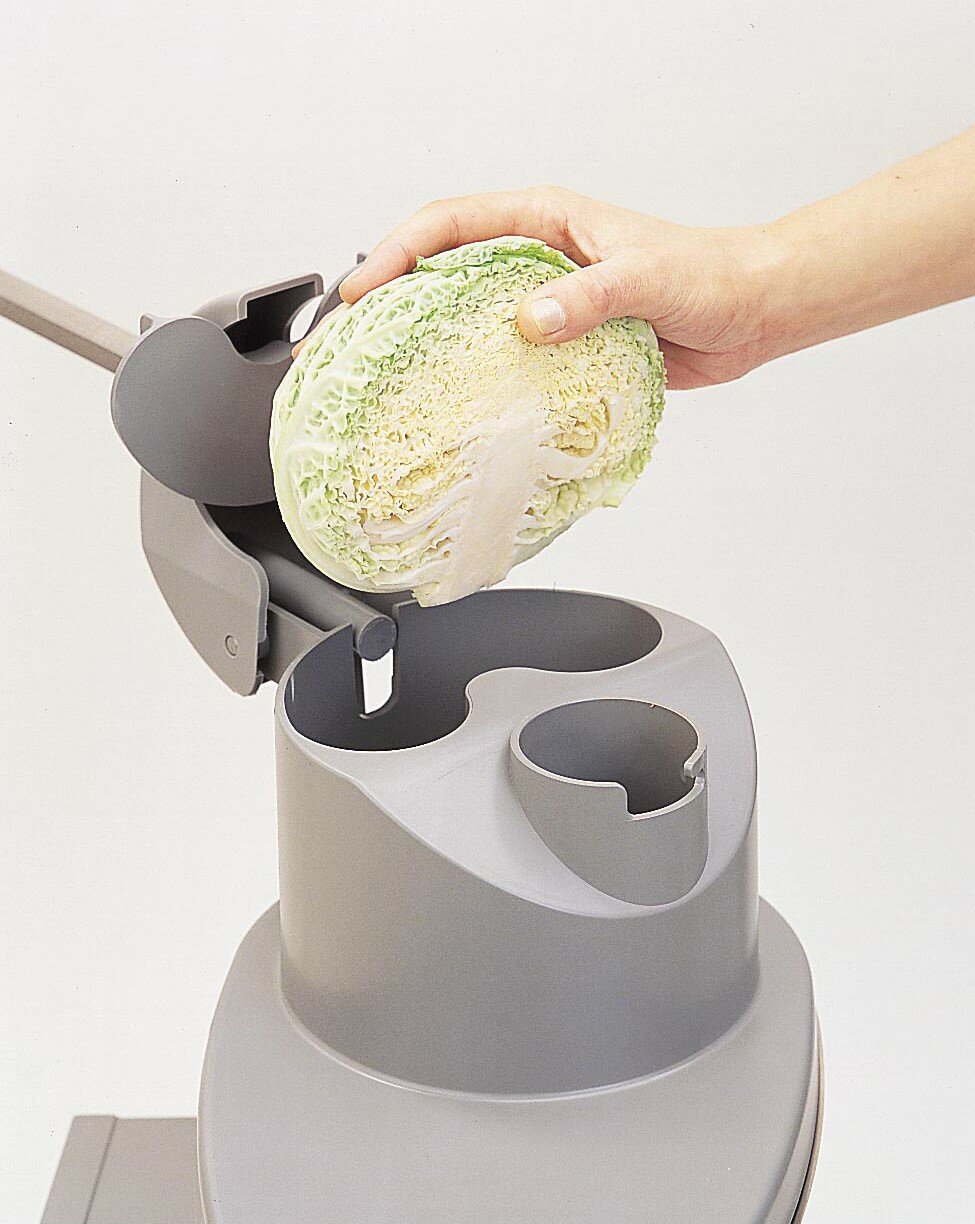

- Large hopper (surface area 104 cm²) designed for cutting bulky vegetables such as cabbage, onion, lettuce and tomatoes.
Precision cuts also available with cylindrical hopper:

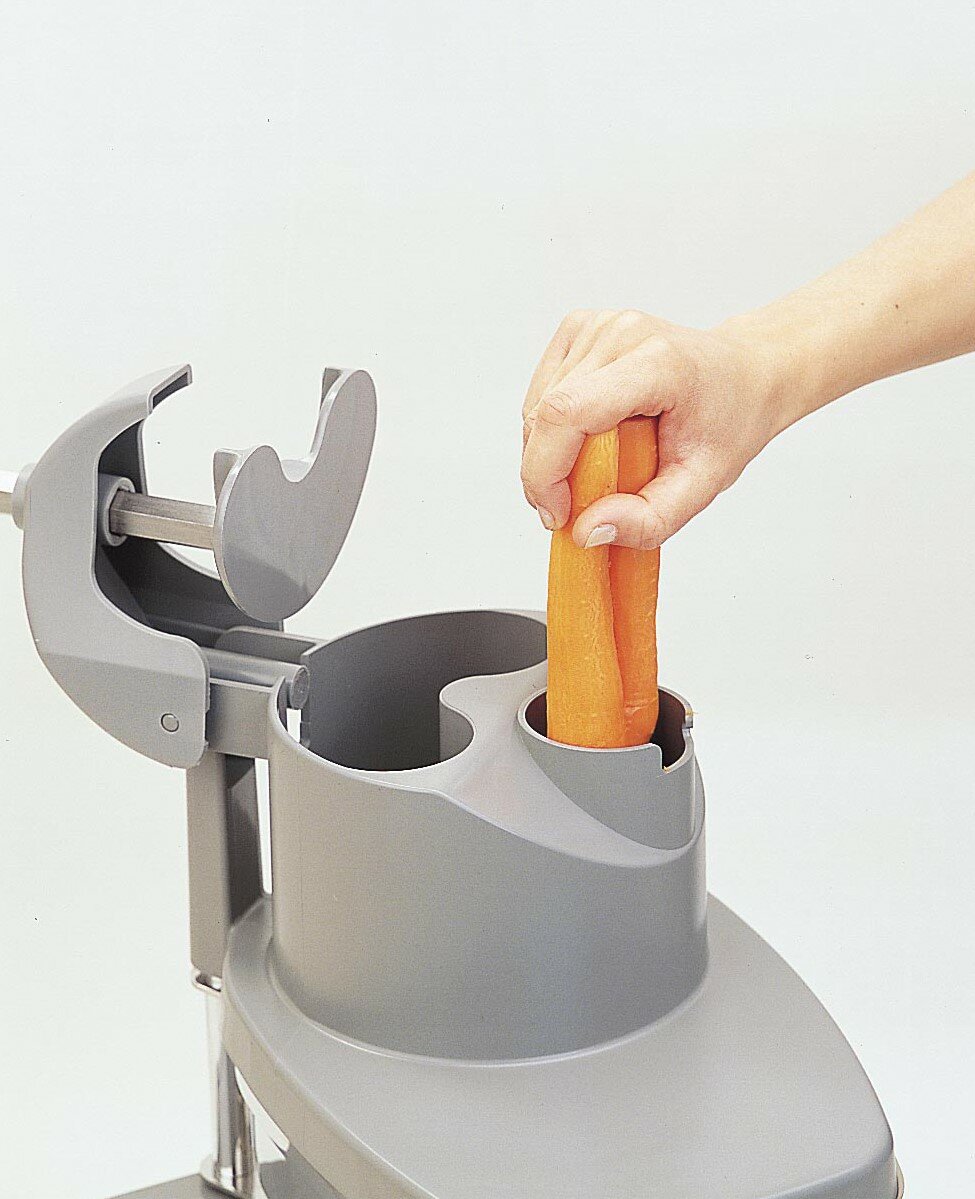

- Ø 58 mm : designed for long and delicate vegetables and (zuchinnis, cucumbers, etc).
- Exactitube pusher (Ø 39 mm): by reducing the diameter of the opening, cut even the smallest ingredients such as chillis, pickles, dry sausage, bananas, strawberries and grapes into regular slices.
Flawless glazed cut
Complete range of 24 stainless steel discs with high-precision sharpening for the highest quality cuts.
Ease of use
- A compact countertop model with a small footprint that allows for a broad variety of cuts and cutter preparations.
- Side ejection: Space saving.
- Equipped with an automatic lever-operated restart to save time and for greater comfort.
Heavy duty
- Stainless steel cutter and veg prep bowls.
- Industrial induction motor for heavy duty use guarantees durability and reliability.
- Motor built on ball bearings for silent running without vibration
- Direct drive motor:
• Extra power
• No belts
• No maintenance
- No brushes
- Stainless steel motor shaft
Accessories
1 mm
1 mm
2 mm
2 mm
3 mm
3 mm
4 mm
4 mm
5 mm
5 mm
6 mm
6 mm
3 mm
3 mm
5 mm
5 mm
1.5 mm
1.5 mm
2 mm
2 mm
3 mm
3 mm
6 mm
6 mm
9 mm
9 mm
Parmesan cheese
Parmesan cheese
Röstis potatoes
Röstis potatoes
Raw potatoes
Raw potatoes
0.7 mm
0.7 mm
1 mm
1 mm
1.3 mm
1.3 mm
2 x 4 mm
2 x 4 mm
2 x 6 mm
2 x 6 mm
2 x 2 mm
2 x 2 mm
4 x 4 mm
4 x 4 mm
6 x 6 mm
6 x 6 mm
8 x 8 mm
8 x 8 mm
8 x 8 x 8 mm
8 x 8 x 8 mm
10 x 10 x 10 mm
10 x 10 x 10 mm
12 x 12 x 12 mm
12 x 12 x 12 mm
8 x 8 mm
8 x 8 mm
10 x 10 mm
10 x 10 mm
Characteristics and product comparison
 R 402 V.V.
|
 R 502
|
 R 502 V.V.
|
|
|---|---|---|---|
| Induction motor |
Yes | Yes | Yes |
| Wattage | 1000 W | 900 W | 1500 W |
| Voltage | Single phase | Three phase | Single phase |
| Speed(s) | 300 to 3500 rpm for cutter 300 to 1000 rpm for vegetable slicer |
750 rpm to 1500 rpm | 300 to 3500 rpm for cutter 300 to 1000 rpm for vegetable slicer |
| Pulse | Yes | Yes | Yes |
| Motor base | Metal | Metal | Metal |
| Feed tube(s) | Half moon hopper 1.6 L Cylindrical hoppers Ø 58 mm and Ø 39 mm, Exactitube pusher - Included Stainless steel |
Half moon hopper 2.2 L Cylindrical hopper Ø 58 mm and Ø 39 mm, Exactitube pusher |
Half moon hopper 2.2 L Cylindrical hopper Ø 58 mm and Ø 39 mm, Exactitube pusher - Included |
| Cutter | 4.5 L stainless steel bowl with handle | 5.9 L stainless steel bowl with handle | 5.9 L stainless steel bowl |
| Scraper arm | - | Yes | Yes |
| Blade(s) | Stainless steel smooth blade - Included | Stainless steel smooth blade - Included | Stainless steel smooth blade - Included |
| Ejection | Continuous | Continuous | Continuous |
| Discs | Not included | Not included | Not included |
| Net weight (kg) | 22 | 29 | 30 |
| Gross weight (kg) | 23 | 34 | 35 |
| Dimensions (L x W x H) mm |
320x305x590 |
380x365x670 |
380x365x670 |
|
