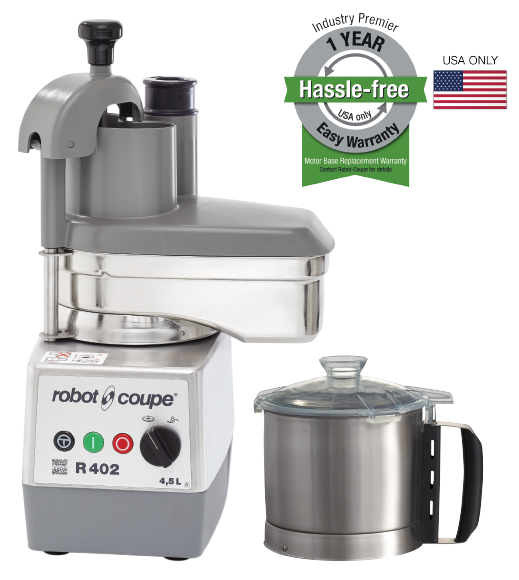

R 402
A multi-function compact table-top model, easy to clean and simple to store - even in the tiniest of kitchens.
- Cutter to chop, emulsify, knead, grind and prepare sauces.
- Vegetable slicer to easily slice, grate, julienne, dicing and French fries for salads and general daily food preparation.
Description
Cutter bowl
4.5L stainless steel bowl with handle.

Bowl-base twin-blade assembly
To process both large and small quantities.
Optional
- Coarse serrated blade: kneading and grinding
- Fine serrated blade: herbs and spices


Veg prep attachment
- Large hopper (surface area 16 in²) designed for cutting bulky vegetables such as cabbage, onion, lettuce and tomatoes.
- Precision cuts also available with cylindrical hopper (Ø 2 1/4"): long and delicate fruits and vegetables.
- Exactitube pusher (Ø 39 mm): by reducing the diameter of the opening, cut even the smallest ingredients such as chillis, pickles, dry sausage, bananas, strawberries and grapes into regular slices.
Accessories

- 1 mm (3/64")
- 1 mm (3/64")

- 2 mm (5/64")
- 2 mm (5/64")

- 3 mm (1/8")
- 3 mm (1/8")

- 4 mm (5/32")
- 4 mm (5/32")

- 5 mm (3/16")
- 5 mm (3/16")

- 6 mm (1/4")
- 6 mm (1/4")




















- 8 x 8 mm (5/16")
- 8 x 8 mm (5/16")

- 10 x 10 mm (3/18")
- 10 x 10 mm (3/18")









Characteristics and product comparison
![]() R 402
|
![]() R 502
|
![]() R 502 V.V.
|
|
---|---|---|---|
Induction motor |
Yes | Yes | Yes |
Power | 2 HP | 1.2 HP | 2 HP |
Voltage | Single phase 120 V | 3 phase 208V-240V | Single Phase 120 V |
Speeds | 600 rpm - 1800 rpm | 850 rpm - 1725 rpm | 300 to 3500 rpm |
Pulse | Yes | Yes | Yes |
Motor base | Metal | Metal | Metal |
Feed Hopper | Half-moon hopper Cylindrical hopper Ø 2 1/4" Exactitube pusher - Included |
Half-moon hopper, Cylindrical hopper Ø 2 1/4" |
Half-moon hopper, Cylindrical hopper Ø 2 1/4" |
Cutter Bowl | 4.5 L stainless steel bowl | 5.9 L stainless steel bowl | 5.9 L stainless steel bowl |
Scraper arm | - | Yes | Yes |
Blade(s) | Stainless steel smooth blades - Included | Stainless steel smooth "S" blade - Included | Stainless steel smooth "S" blade - Included |
Discs | Included: Slicing disc 4 mm (5/32"), grating disc 2 mm (5/64") |
Included: Slicing disc 3 mm (1/8"), Grating disc 3 mm (1/8") | Included: Slicing disc 3 mm (1/8"), grating disc 3 mm (1/8") |
Gross weight (Lbs) | 50 | 81 | 79 |
Dimensions (W × L × H) |
24" x 16.5" x 20.5" | 29.5" x 18" x1 9.5" | 29.5" x 18" x1 9.5" |
Dicing French Fry Capabilities | Yes | Yes | Yes |
This product
|
More information | More information |
Product documentation
-
Sales brochures 1.66 Mo
DOWNLOAD -
Safety and operating instructions 6.91 Mo
DOWNLOAD -
Discs Documentation 2.29 Mo
DOWNLOAD -
R 402 - Your machine
WATCH THE VIDEO -
R 402 - Assembly & Operation
WATCH THE VIDEO -
R 402 - Accessories
WATCH THE VIDEO -
R 402 - Cleaning & Maintenance
WATCH THE VIDEO
